Frame System
Triman’s Frame system is a temporary structure used to support a work crew and materials to aid in the construction, maintenance and repair of buildings, bridges and all other man-made structures. Each Frame incorporates quick action lock fittings for attachment of horizontal and diagonal members
It is a kind of light duty scaffolding and easier for moving, usually has 2 main frames, 2 pairs of cross braces, and 4 pieces of joint pins. The caster wheels can be installed at the bottom of the frame, so it can be moved easily.
Frame Scaffold Advantages
- Large selection of frame lock types and tube sizes
- Scaffolding for masonry, maintenance and shoring
- Fast erection and dismantling
- Safe, efficient and easily assembled
Frame Lock : It is welded into the Scaffolding frame for providing the locking system for diagonal braces.
Spring Pivot : It is inserted into the holes of spigot and tube for providing the locking the pieces together.

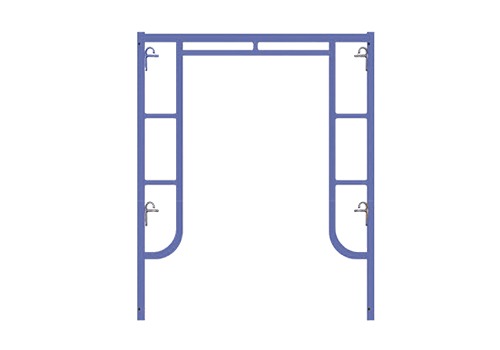

Walk Through Frame
| Item Code | Width (MM) | Height (MM) | Finish |
|---|---|---|---|
|
PI-2001 |
2′( 609) |
5′ (1524) |
Powder Coated |
|
PI-2002 |
2′( 609) |
6″4′ (1930) |
Powder Coated |
|
PI-2003 |
3′ (914) |
4′ (1219) |
Powder Coated |
|
PI-2004 |
3′ (914) |
5′ (1524) |
Powder Coated |
|
PI-2005 |
3′ (914) |
6′ (1728) |
Powder Coated |
| Item Code | Width (MM) | Height (MM) | Finish |
|---|---|---|---|
|
PI-2101 |
4′ (1219) |
5’7″ (1700) |
Powder Coated |
|
PI-2102 |
4′ (1219) |
6″4′ (1930) |
Powder Coated |
|
PI-2103 |
5′ (1524) |
4′ (1219) |
Powder Coated |
|
PI-2104 |
5′ (1524) |
6″4′ (1930) |
Powder Coated |
|
PI-2105 |
5′ (1524) |
6’7″ (2006.6) |
Powder Coated |
Mason Frame
Ladder Frame
| Item Code | Width (MM) | Height (MM) | Finish |
|---|---|---|---|
|
PI-2201 |
4′ (1219) |
5′ (1524) |
Powder Coated |
|
PI-2202 |
5′ (1524) |
3′ (914) |
Powder Coated |
|
PI-2203 |
5′ (1524) |
4′ (1219) |
Powder Coated |
|
PI-2204 |
5′ (1524) |
5′ (1524) |
Powder Coated |
|
PI-2205 |
5′ (1524) |
6″4′ (1930) |
Powder Coated |
| Item Code | Width (MM) | Height (MM) | Finish |
|---|---|---|---|
|
PI-2301 |
5′ (1524) |
5′ (1524) |
Powder Coated |
|
PI-2402 |
5′ (1524) |
6″4′ (1930) |
Powder Coated |
Double Ladder Frame
Tradition Frame Scaffolding
Code No - PI-2401
Cross Brace
Code No - PI-2402

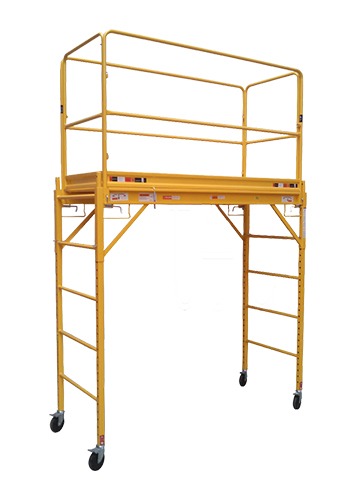

Mobile Frame Scaffolding
Code No - PI-2403

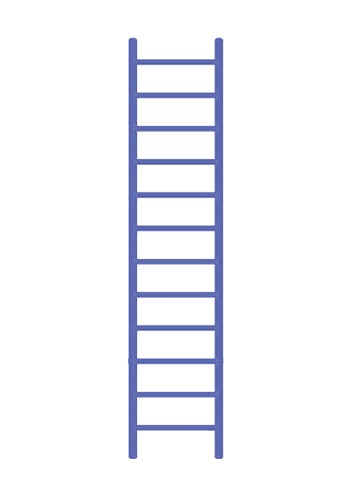

Ladder
Code No - PI-2404

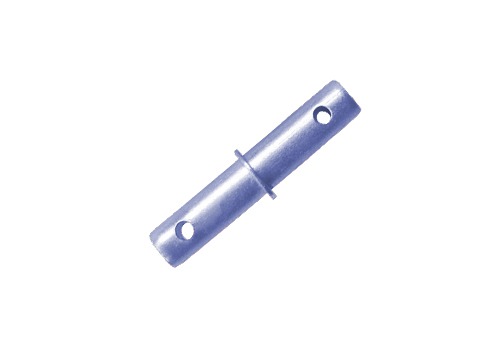

Coupling Pin
Code No - PI-2405

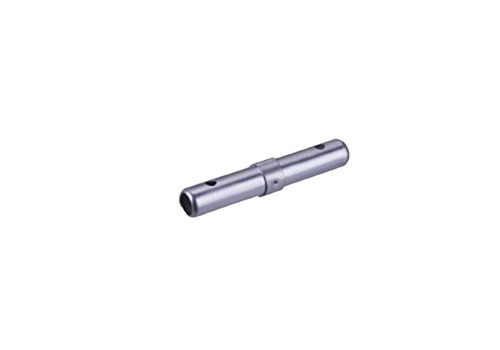

Coupling Pin
Code No - PI-2406

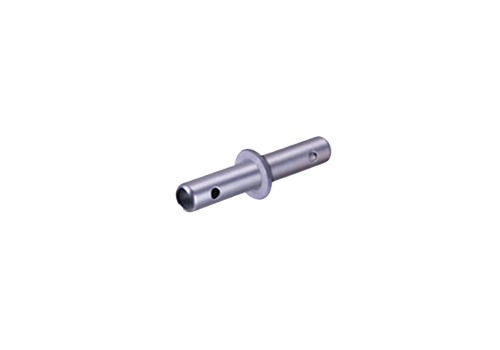

Coupling Pin
Code No - PI-2407

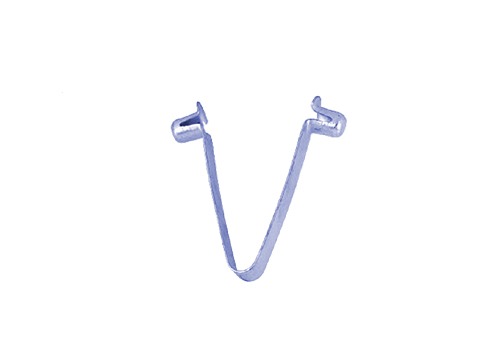

Spring Pivot
Code No - PI-2408

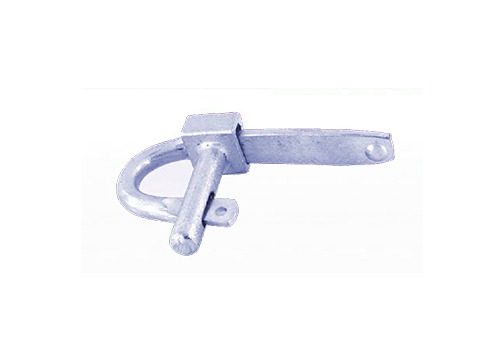

Fast Lock
Code No - PI-2409
Flip Brace Lock
Code No - PI-2410
Flip Brace Lock with Head
Code No - PI-2411
