Ringlock System
PACIFICO’s Ringlock Scaffolding System is ideal for demanding scaffolding applications and where conventional scaffolding technology cannot be used optimally and economically. Its node point provides up to 8 connections. The 4 narrow punched out holes, automatically the ledgers in correct dimensions and at right angles. The 4 wide holes permit alignment of ledgers and diagonal braces at required angle.
Advantages
- Eight connections in one plane, automatic right angles and flexible angle selection, self-locking during assembly
- Time saved in assembly, ergonomic efficiencies for transport, assembly and storage, safer handling
- Invest in a perfected and complete system with all the benefits of rapid, safer, more profitable and highly versatile scaffolding construction.
- Safer internal access components for modular scaffolding and stairway towers, plus a vast variety of special stair solutions
- Economic and adaptable with extremely high strength capacity values, self-supporting and quick to install.
Our Scaffolding products are engineered to meet the highest quality standards based on three simple factors:
Material Quality: We only use the highest quality steel grade in our system and also do the chemical and mechanical test of each lot to give 100 % satisfaction to client.
Components Fitment: Our modified product designs increase efficiencies and productivity, saving your projects time and money.
Surface Finish: Our products are finished and protected by hot-dipped zinc galvanizing up to 80 Microns. This method of finishing maximizes the utilization and extends the product life.
| Item Code | Description | Size (MM) | Specification |
|---|---|---|---|
|
PI-101 |
Standard with one Rosette |
500 |
Q345B, 48.3X3.25MM |
|
PI-102 |
Standard with two Rosette |
1000 |
Q345B, 48.3X3.25MM |
|
PI-103 |
Standard with three Rosette |
1500 |
Q345B, 48.3X3.25MM |
|
PI-104 |
Standard with Four Rosette |
2000 |
Q345B, 48.3X3.25MM |
|
PI-105 |
Standard with Five Rosette |
2500 |
Q345B, 48.3X3.25MM |
|
PI-106 |
Standard with Six Rosette |
3000 |
Q345B, 48.3X3.25MM |

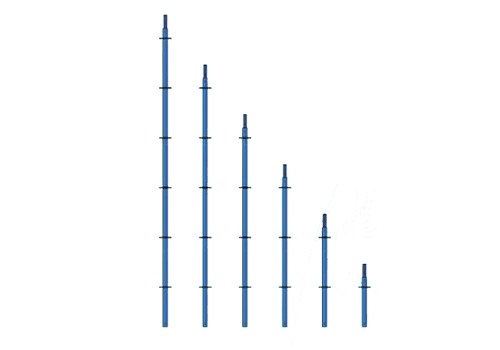

Standard
The Standard is the vertical member of the Ringlock scaffolding system .The rosettes are located at fixed distance of 0.5 meter for attaching horizontal Ledgers and Diagonal Braces. The Standard provides the vertical support for the scaffold system.

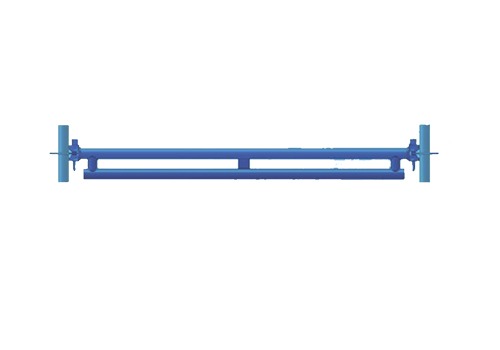

Ledger / Horizontal
Ledger are the horizontal member of Ringlock Scaffolding System. They provide horizontal support for Ringlock planks.
| Item Code | Description | Lenght (MM) | Specification |
|---|---|---|---|
|
PI-201 |
Ledger 0.73 |
732 |
Q345B, 48.3X3.25MM |
|
PI-202 |
Ledger 1.09 |
1090 |
Q345B, 48.3X3.25MM |
|
PI-203 |
Ledger 1.40 |
1400 |
Q345B, 48.3X3.25MM |
|
PI-204 |
Ledger 1.57 |
1572 |
Q345B, 48.3X3.25MM |
|
PI-205 |
Ledger 2.07 |
2072 |
Q345B, 48.3X3.25MM |
|
PI-206 |
Ledger 2.57 |
2572 |
Q345B, 48.3X3.25MM |
|
PI-207 |
Ledger 3.07 |
3072 |
Q345B, 48.3X3.25MM |
| Item Code | Description | Size (MM) | Specification |
|---|---|---|---|
|
PI-301 |
Brace 0.73 |
732×2000 |
Q235B, 48.3X3.25MM |
|
PI-302 |
Brace 1.09 |
1088×2000 |
Q235B, 48.3X3.25MM |
|
PI-303 |
Brace 1.40 |
1400×2000 |
Q235B, 48.3X3.25MM |
|
PI-304 |
Brace 1.57 |
1572×2000 |
Q235B, 48.3X3.25MM |
|
PI-305 |
Brace 2.07 |
2072×2000 |
Q235B, 48.3X3.25MM |
|
PI-306 |
Brace 2.57 |
2572×2000 |
Q235B, 48.3X3.25MM |
|
PI-307 |
Brace 3.07 |
3072×2000 |
Q235B, 48.3X3.25MM |

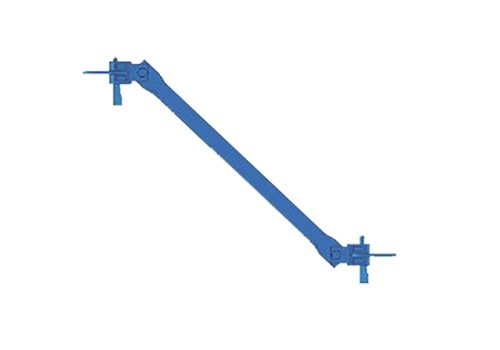

Brace/Diagonal
Diagonals are used for the lateral bracing of Ringlock scaffolding System. They can also be used as compression and tension members for cantilevers, transmitting loads back into the main scaffold structure

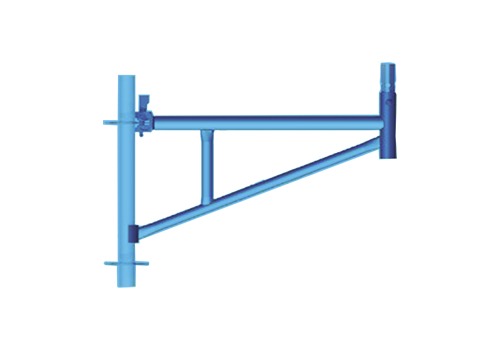

Board Brackets
Brackets are used to extend the working platform closer to the building structure in cases where the main scaffold cannot be erected directly next to the working face.
| Item Code | Description | Size (MM) | Specification |
|---|---|---|---|
|
PI-401 |
Board Bracket 0.32 |
320 |
Q345B, 48.3X3.25MM |
|
PI-402 |
Board Bracket 0.73 |
732 |
Q345B, 48.3X3.25MM |
|
PI-403 |
Board Bracket 1.09 |
1090 |
Q345B, 48.3X3.25MM |
| Item Code | Description | Size (MM) | Specification |
|---|---|---|---|
|
PI-501 |
Base Collar Short |
230 |
Q345B, 48.3X3.25MM |
|
PI-502 |
Base Collar Long |
230 |
Q345B, 48.3X3.25MM |

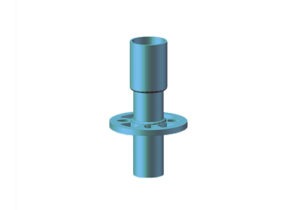

Base Collar
The Base Collar is the beginning of the Ringlock Scaffolding System. It sits upon a fixed or Adjustable Base

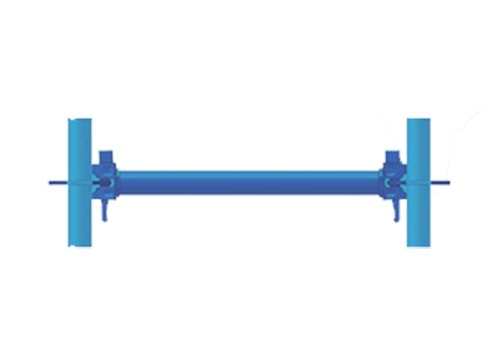

Double Ledger
Double ledgers are just an additional reinforcement added to normal ledger structures to bear higher loads
| Item Code | Description | Lenght (MM) | Specification |
|---|---|---|---|
|
PI-601 |
Double Ledger 1.40 |
1400 |
Q345B, 48.3X3.25MM |
|
PI-602 |
Double Ledger 1.57 |
1572 |
Q345B, 48.3X3.25MM |
|
PI-603 |
Double Ledger 2.07 |
2072 |
Q345B, 48.3X3.25MM |
|
PI-604 |
Double Ledger 2.13 |
2130 |
Q345B, 48.3X3.25MM |
|
PI-605 |
Double Ledger 2.57 |
2572 |
Q345B, 48.3X3.25MM |
|
PI-606 |
Double Ledger 3.07 |
3072 |
Q345B, 48.3X3.25MM |
| Item Code | Description | Lenght (MM) | Specification |
|---|---|---|---|
|
PI-701 |
Lattice Girder 3.07 |
3070 |
Q345B, 48.3X3.25MM |
|
PI-702 |
Lattice Girder 4.14 |
4144 |
Q345B, 48.3X3.25MM |
|
PI-703 |
Lattice Girder 5.14 |
5144 |
Q345B, 48.3X3.25MM |
|
PI-704 |
Lattice Girder 6.14 |
6144 |
Q345B, 48.3X3.25MM |

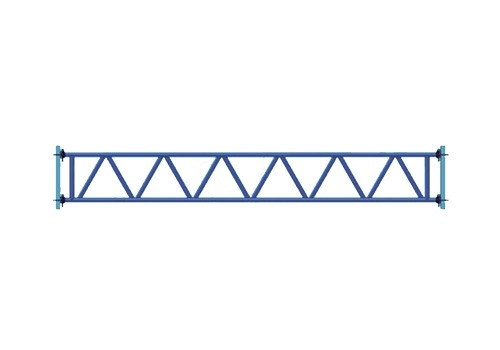

Lattice Girder
Lattice girders are the horizontal members of Ringlock Scaffolding System that allow for scaffolding over large spans or gaps

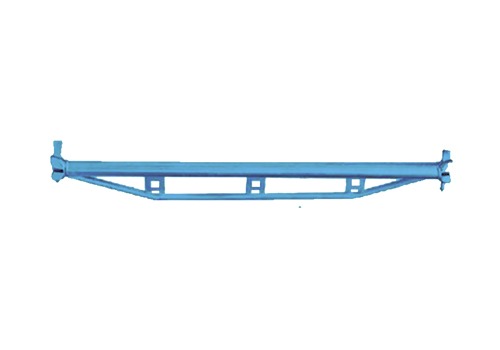

Bridging ledger
It has been value engineered to enable higher service loads to the scaffold than could be applied using traditional Ledgers. The reinforcing tube and stiffener plates support the top tube and provide strength while maintaining lightness.
| Item Code | Description | Lenght (MM) | Specification |
|---|---|---|---|
|
PI-801 |
Bridging ledger 1.57 |
1572 |
Q345B, 48.3X3.25MM |
|
PI-802 |
Bridging ledger 2.07 |
2072 |
Q345B, 48.3X3.25MM |
|
PI-803 |
Bridging ledger 2.57 |
2572 |
Q345B, 48.3X3.25MM |
|
PI-804 |
Bridging ledger 3.07 |
3072 |
Q345B, 48.3X3.25MM |
| Item Code | Description | Size (MM) | Specification |
|---|---|---|---|
|
PI-901 |
Toe Baord 0.73 |
732 |
Sheet Thickness 1.5MM |
|
PI-902 |
Toe Board 1.09 |
1090 |
Sheet Thickness 1.5MM |
|
PI-903 |
Toe Board 1.40 |
1400 |
Sheet Thickness 1.5MM |
|
PI-904 |
Toe Board 1.57 |
1572 |
Sheet Thickness 1.5MM |
|
PI-905 |
Toe Baord 2.07 |
2072 |
Sheet Thickness 1.5MM |
|
PI-906 |
Toe Baord 2.57 |
2572 |
Sheet Thickness 1.5MM |
|
PI-907 |
Toe Baord 3.07 |
3072 |
Sheet Thickness 1.5MM |

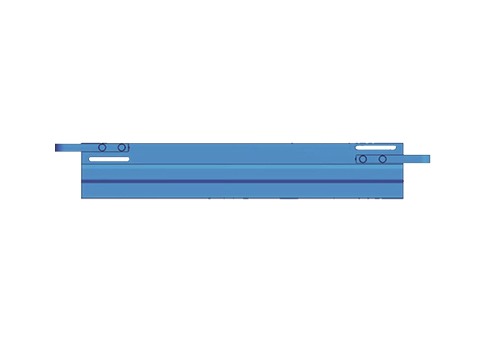

Toe Boards
It is designed to enclose the bay at the plank level, preventing small tools, debris and other items from falling off the planked platform.

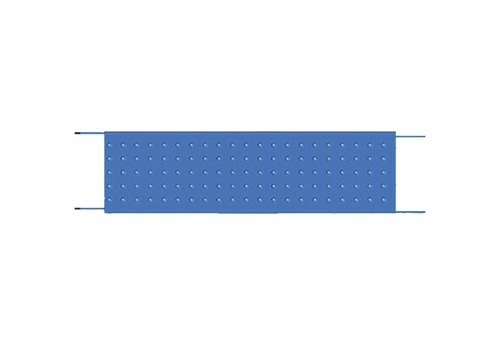

Steel Planks (Raised Hook)
It is used to form the working platform. The number of Steel Planks used determines the width of the platform. They span the length of the bay and hook onto the supporting Ledger/Transom. There is an anti-lift system to prevent uplift in adverse weather conditions.
| Item Code | Description | Lenght (MM) | Specification |
|---|---|---|---|
|
PI-1001 |
Steel Plank 0.73 |
732 |
Width 229MM, Thickness 1.5MM |
|
PI-1002 |
Steel Plank 1.57 |
1572 |
Width 229MM, Thickness 1.5MM |
|
PI-1003 |
Steel Plank 2.07 |
2072 |
Width 229MM, Thickness 1.5MM |
|
PI-1004 |
Steel Plank 2.57 |
2570 |
Width 229MM, Thickness 1.5MM |
|
PI-1005 |
Steel Plank 3.07 |
3072 |
Width 229MM, Thickness 1.5MM |
| Item Code | Description | Lenght (MM) | Specification |
|---|---|---|---|
|
PI-1101 |
Steel Plank 0.73 |
732 |
Width 229MM, Thickness 1.5MM |
|
PI-1102 |
Steel Plank 1.57 |
1572 |
Width 229MM, Thickness 1.5MM |
|
PI-1103 |
Steel Plank 2.07 |
2072 |
Width 229MM, Thickness 1.5MM |
|
PI-1104 |
Steel Plank 2.57 |
2570 |
Width 229MM, Thickness 1.5MM |
|
PI-1105 |
Steel Plank 3.07 |
3072 |
Width 229MM, Thickness 1.5MM |

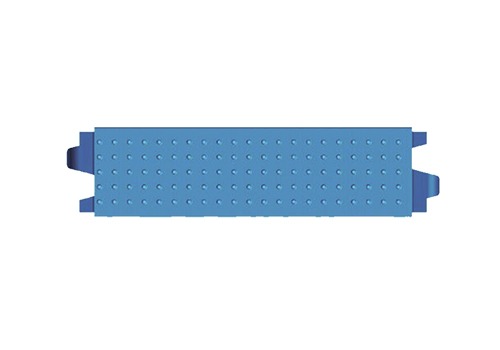

Steel Planks (Low Profile)
It is used to form the working platform. The number of Planks used determines the width of the platform. They span the length of the bay and hook onto the supporting Ledger/Transom. There is an anti-lift system to prevent uplift in adverse weather conditions

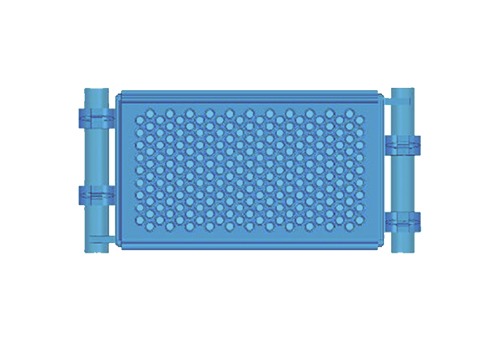

Steel Planks 320 MM
| Item Code | Description | Size (MM) | Specification |
|---|---|---|---|
|
PI-1201 |
Steel Plank 0.73 |
732 |
Hot Dipped Galvansied |
|
PI-1202 |
Steel Plank 1.09 |
1088 |
Hot Dipped Galvansied |
|
PI-1203 |
Steel Plank 1.40 |
1400 |
Hot Dipped Galvansied |
|
PI-1204 |
Toe Board 1.57 |
1572 |
Hot Dipped Galvansied |
|
PI-1205 |
Steel Plank 2.07 |
2072 |
Hot Dipped Galvansied |
|
PI-1206 |
Steel Plank 2.57 |
2572 |
Hot Dipped Galvansied |
|
PI-1207 |
Steel Plank 3.07 |
3072 |
Hot Dipped Galvansied |
| Item Code | Description | Size (MM) | Specification |
|---|---|---|---|
|
PI-1301 |
Steel Plank 0.73 |
732 |
Hot Dipped Galvansied |
|
PI-1302 |
Steel Plank 1.09 |
1088 |
Hot Dipped Galvansied |
|
PI-1303 |
Steel Plank 2.07 |
2072 |
Hot Dipped Galvansied |
|
PI-1304 |
Steel Plank 2.57 |
2572 |
Hot Dipped Galvansied |
|
PI-1305 |
Steel Plank 3.07 |
3072 |
Hot Dipped Galvansied |

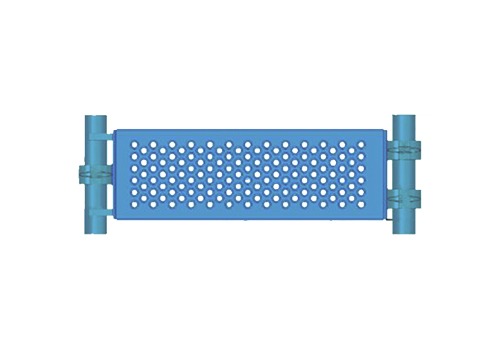

Steel Planks 190 MM
Aluminium Plank 19
| Item Code | Description | Size (MM) | Specification |
|---|---|---|---|
|
PI-1401 |
Aluminium Plank 3′ |
910 |
Aluminium 6061 -T6 |
|
PI-1402 |
Aluminium Plank 4′ |
1220 |
Aluminium 6061 -T6 |
|
PI-1403 |
Aluminium Plank 5′ |
1520 |
Aluminium 6061 -T6 |
|
PI-1404 |
Aluminium Plank 6′ |
1830 |
Aluminium 6061 -T6 |
|
PI-1405 |
Aluminium Plank 7′ |
2130 |
Aluminium 6061 -T6 |
|
PI-1405 |
Aluminium Plank 10′ |
3050 |
Aluminium 6061 -T6 |
| Item Code | Description | Size (MM) | Specification |
|---|---|---|---|
|
PI-1501 |
Aluminium Plank 1.57 |
1572 |
610- 710 |
|
PI-1502 |
Aluminium Plank 2.07 |
2072 |
610- 710 |
|
PI-1503 |
Aluminium Plank 2.57 |
2572 |
610- 710 |
|
PI-1504 |
Aluminium Plank 3.07 |
3072 |
610- 710 |

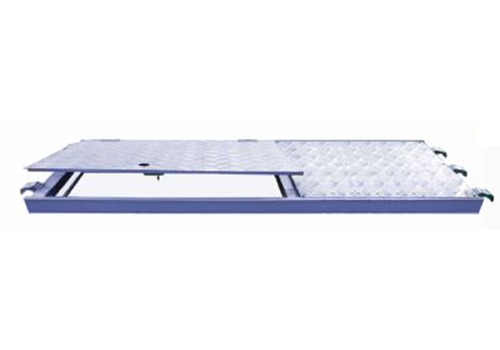

Aluminium Plank with Manhole

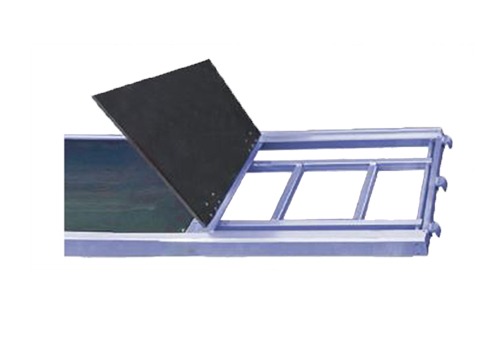

Aluminium Plank with Ladder
The aluminum frame with Plywood Ladder Hatch Deck acts as a lightweight, extra wide Scaffold Plank that incorporates a Ladder. The aluminum Ladder is safely secured to the underside of the Plank with no obstructions to the walkway. When the Ladder needs to be used it can be unlocked and rotated and rests in an inclined position. The hatch opens fully and allows easy access and egress to/from each lift. This product provides a quick and efficient access and egress solution.
| Item Code | Description | Size (MM) | Specification |
|---|---|---|---|
|
PI-1601 |
Aluminium Plank 2.57 |
2572 |
610- 710 |
|
PI-1602 |
Aluminium Plank 3.07 |
3072 |
610- 710 |
| Item Code | Description | Size (MM) | Specification |
|---|---|---|---|
|
PI-1701 |
Stair Case 2.57 |
2572×2000 |
Aluminium 6061 -T6 |
|
PI-1702 |
Stair Case 3.07 |
3072×2000 |
Aluminium 6061 -T6 |

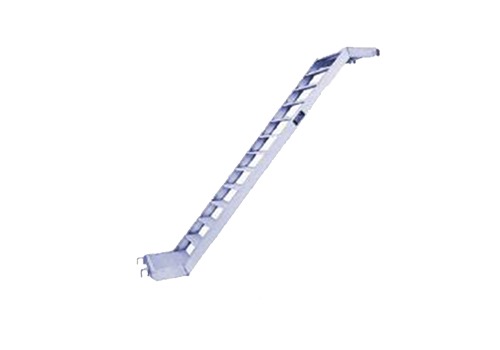

Aluminum Staircase
Aluminum stairs are complete stair units with built in landings. The use of lightweight structural aluminum for the stair stringers, treads and landings make these units highly manageable and easy to install.
