Shoring Prop
- Triman Industrial Corporation
Triman’s Shoring Props are suitable for wide range of shoring requirement. They are practical, economical and resilient. They are suited invaluable for a wide variety of applications in general building, internal demolition and repair work. It can be adjusted to any length within its range, which is convenient for using.
Available in a wide range of types and dimensions to satisfy all the needs.
Features:
- Tubes in steel grade Q235B, Q345B
- Internal tube ø 40.0 mm / 48.3 mm / 60.3 mm
- External tube ø 48.3mm / 56.0 mm / 76.0 mm.
- Thickness of tube from 1.6 mm to 4.0 mm
- Diameter of the pin 10, 12, 14 and 16 mm.
- Plates are 100 X 100 X 4 mm, 120 x 120 x 5 mm& 150 x 150 x 8 mm
Surface Finish:
- Dip Painted
- Powder Coated
- Electro Galvanized
- Hot dip Galvanized
Prop Accessories: We have wide range of Light Duty Prop Nut ( Range from Dia 48.3 to 60.3 mm ) with compatible sleeve , Medium and Heavy Duty Sleeve ( Range from 60.3 / 76.0 mm ) with different nuts ( Forged / SG Iron / Steel Casted ). We can provide plates in different sizes (Range from 120 x 120 to 150 x 150 mm) with a thickness range from 4.0 to 8.0 mm. Also we can produce Light Duty Prop Nuts in SG Iron according to customer design.
Tripod :We have different design of Tripod with a range of Props from 40.0 to 76.0 mm. We can provide tripod in different surface finish such as Painted, Powder Coated, Electro Galvanized and Hot Dip Galvanized. Customization available.
Light Duty Prop
| Item Code | Size (Meter) | Inner Tube Diamter (MM) | Outer Tube Diamter (MM) | Finish |
|---|---|---|---|---|
|
PI-2501 |
1.6-2.9 |
40/48 |
48/56 |
Dip Painted/Poweted Coated |
|
PI-2502 |
1.8-3.2 |
40/48 |
48/56 |
Dip Painted/Poweted Coated |
|
PI-2503 |
2.0-3.5 |
48 |
56 |
Dip Painted/Poweted Coated |
|
PI-2504 |
2.2-4.0 |
48 |
56 |
Dip Painted/Poweted Coated |
| Item Code | Size (Meter) | Inner Tube Diamter (MM) | Outer Tube Diamter (MM) | Finish |
|---|---|---|---|---|
|
PI-2601 |
1.6-2.9 |
48.30 |
60.30 |
Dip Painted/Poweted Coated |
|
PI-2602 |
1.8-3.2 |
48.30 |
60.30 |
Dip Painted/Poweted Coated |
|
PI-2603 |
2.0-3.5 |
48.30 |
60.30 |
Dip Painted/Poweted Coated |
|
PI-2604 |
2.2-4.0 |
48.30 |
60.30 |
Dip Painted/Poweted Coated |

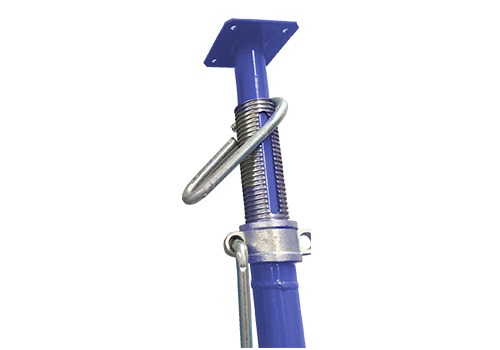

Heavy Duty Prop
Medium Duty Prop
| Item Code | Size (Meter) | Inner Tube Diamter (MM) | Outer Tube Diamter (MM) | Finish |
|---|---|---|---|---|
|
PI-2701 |
2.0-3.5 |
48.30 |
60.30 |
Powder Coated/Hot Dip Galvanised |
|
PI-2702 |
2.2-4.0 |
48.30 |
60.30 |
Powder Coated/Hot Dip Galvanised |
|
PI-2703 |
2.6-4.5 |
48.30 |
60.30 |
Powder Coated/Hot Dip Galvanised |
|
PI-2704 |
3.0- 5.0 |
48.30 |
60.30 |
Powder Coated/Hot Dip Galvanised |

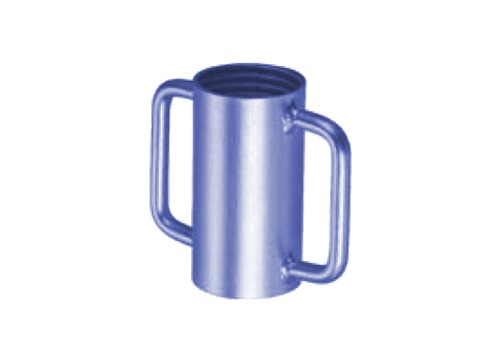

Prop Nut
Code No - PI-2801

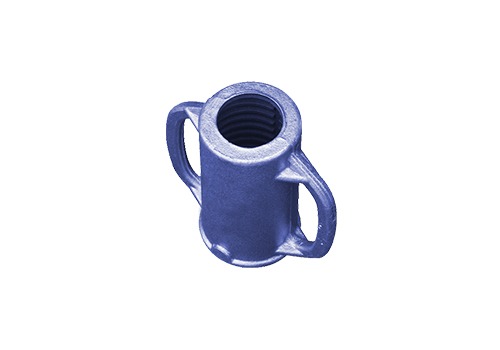

Casted Prop Nut
Code No - PI-2802

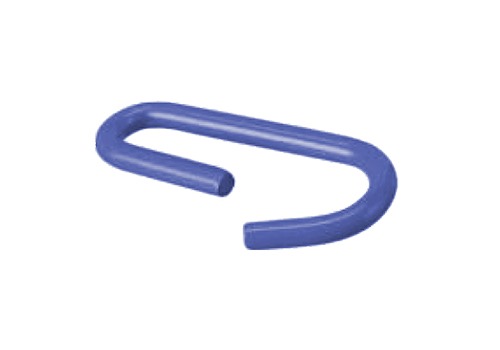

Prop Pin
Code No - PI-2803

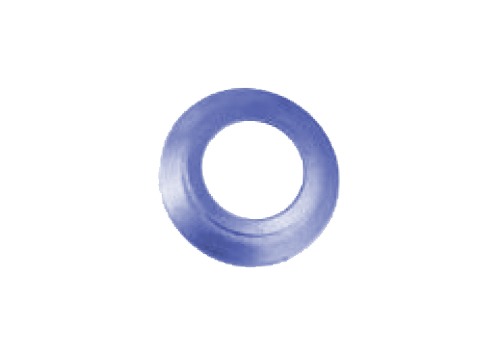

Dust Washer
Code No - PI-2804
Small Threaded Part
Code No - PI-2805

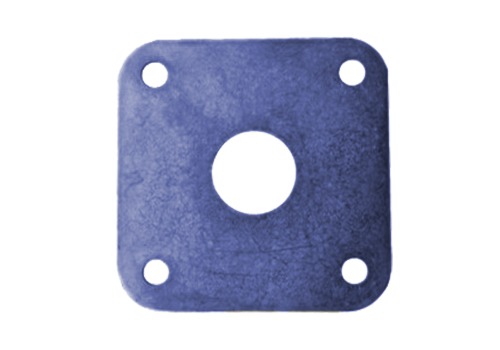

Prop Base Plate
Code No - PI-2806

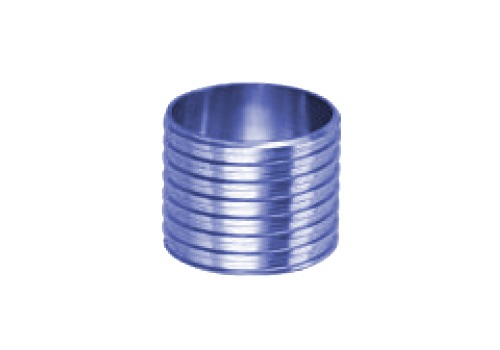

Prop Sleeve
Code No - PI-2807

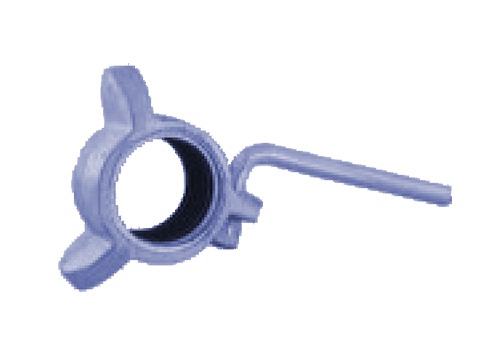

Heavy Duty Prop nut
Code No - PI-2808
Light Duty Prop nut
Code No - PI-2809
Snap Tie
Code No - PI-2810

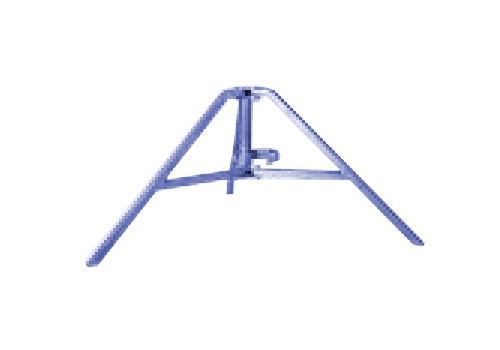

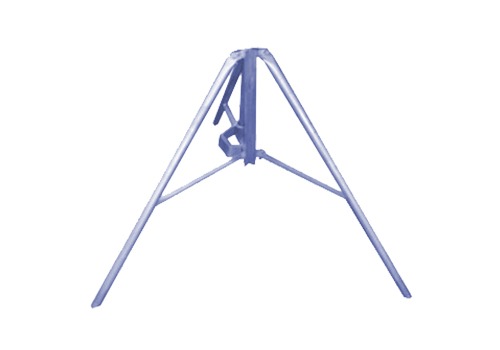

Tripod
Code No - PI-2811
